◎认证号码：E335493（UL认证）
◎认证标准：UL1699和UL498
◎动作电流：5mA脱扣
◎额定电压：120V/60Hz
◎耐 压：输入与输出之间≥1500VAC
输入和输出与外壳之间≥3000VAC
◎寿命次数：3000次
◎脱扣时间：漏电流为5mA时≦8个半周期
◎浪涌等级：6KV/3KA
◎工作温度：-35℃~66℃
◎防护等级：IP65/IP67
◎外观尺寸：86mm(长）*42mm（宽）*62mm（高）
◎功能特点：本产品具有漏电侦测的功能，当本产品电源线中的火线或零线破损时，该产品能及时侦测到漏电信号或拉弧信号，并立即切断电源，保护人及财产的安全。本产品还具有防尘、防浪涌的特点。
◎应用范围：专业用于空调或适用于负载长期使用的家用电器上。
|
序号 |
产品型号 |
额定电流/额定电压 |
功率 |
电源线规格 |
|
1 |
LCDI |
10A/120VAC |
1200W |
18AWG |
|
2 |
LCDI |
13A/120VAC |
1560W |
16AWG |
|
3 |
LCDI |
15A/120VAC |
1800W |
14AWG |
|
备注 |
电线长度规格按客户要求选配。 |
|||

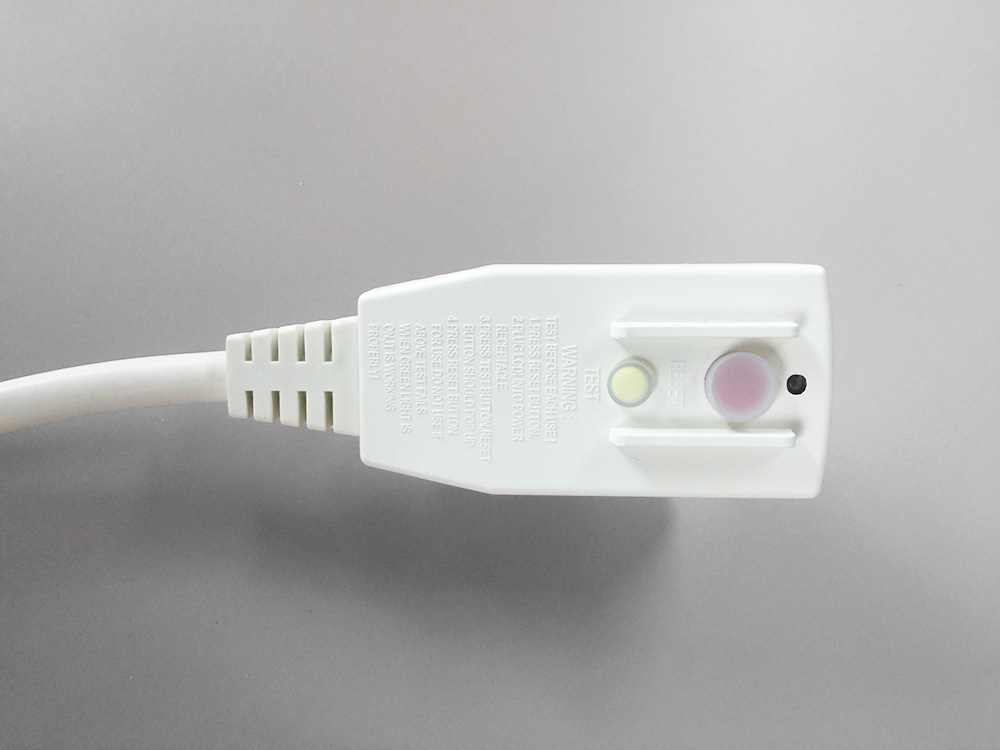

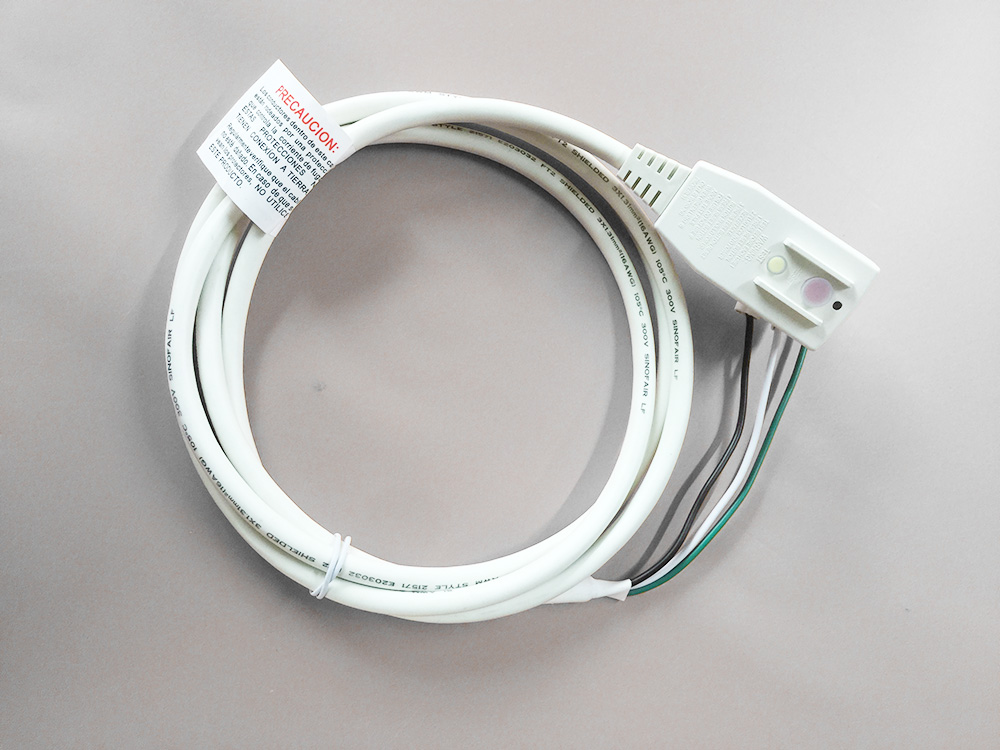

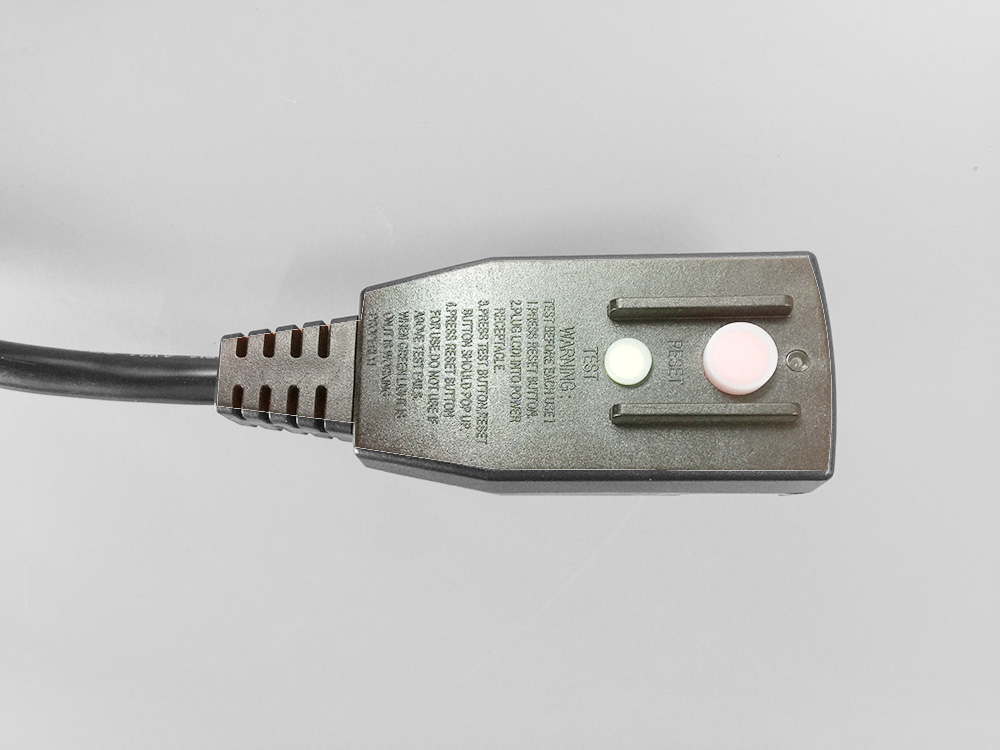

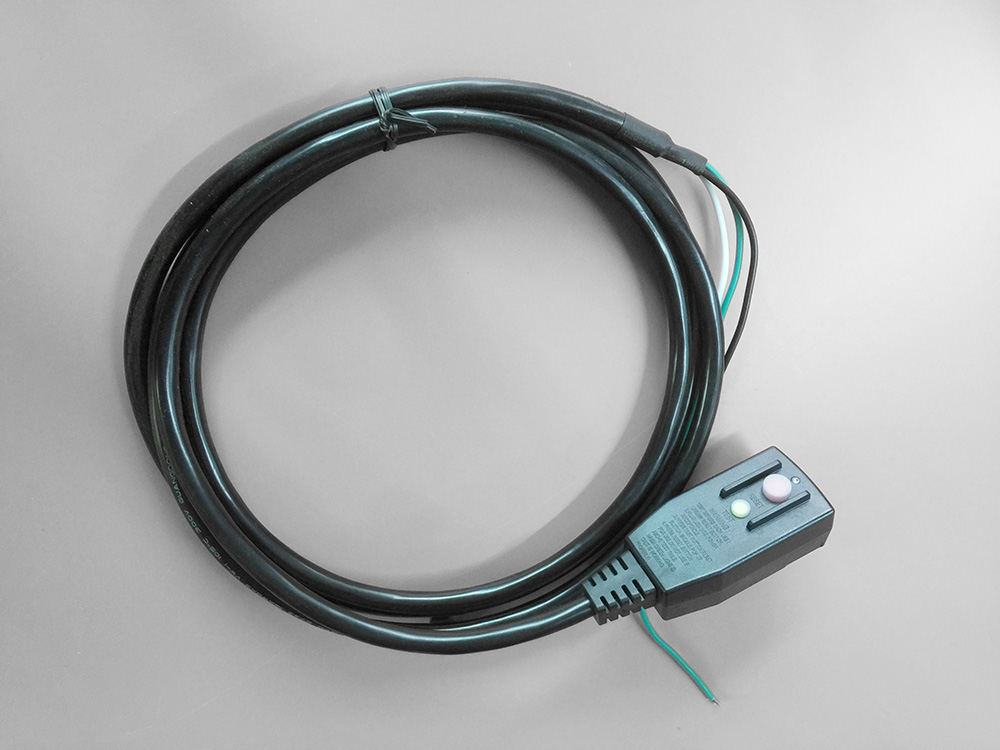

Leakage Current Detection and Interrupter
◎File Number: E335493（UL Certified）
◎UL Standard: UL1699 & UL498
◎Trip Level: 5mA
◎Rated Voltage: 120V/60Hz
◎Voltage Withstand:
≥1500VAC (between the input line and the output line)
≥3000VAC (between the enclosure and the input line, or Between the enclosure and the output line)
◎Lifetime: 3000 times
◎Trip Time: ≤8 half-cycle (when the leakage current is 5mA)
◎Serge Grade: 6KV/3KA
◎Operating Temperature:-35℃~66℃
◎Waterproof Grade: IP65/IP67
◎Dimensions: 86mm（L）×42mm（W）×62mm（H）
◎Waterproof Grade: IP65/IP67
◎Dimensions: 86mm（L）×42mm（W）×62mm（H）
◎Function: This product has the function of leakage detection. In case the hot line of the power cord is damaged, it can detect leakage signals or pull arc signal in time, and interrupts the current promptly, so as to ensure the safety of both people and property. It is also dust proof and surge proof.
◎Application: The product is intended for long-term use of household appliances, such as air condition and refrigerator and so on.
|
Item |
Cat. No. |
Rated current/Rated voltage |
Wattage |
Specification |
|
1 |
LCDI |
10A/120VAC |
1200W |
18AWG |
|
2 |
LCDI |
13A/120VAC |
1560W |
16AWG |
|
3 |
LCDI |
15A/120VAC |
1800W |
14AWG |
|
Note |
The power cord length is according to the requirements of the customer. |
|||
