◎感知电流：4～15A
◎额定电压：120VAC / 24VAC
◎工作温度：0℃~50℃
◎外观尺寸：65mm(长）× 36mm（宽）× 26mm（高）
◎功能特点：电流感应器是电流传感器的一种，是通过负载电流的变化控制设备的工作，以弱电控制强电，安全性比较高。
◎应用范围：常用于仓库、粮库、控温、控湿等专用设备的辅助控制。
|
序号 |
产品型号 |
额定电流/额定电压 |
功率 |
电源线规格 |
|
1 |
GA-50 |
24VAC |
3W-10W |
SPT-1 18#黑/白 |
|
2 |
GA-51 |
120VAC |
3W-120W |
SPT-1 18#黑色 |

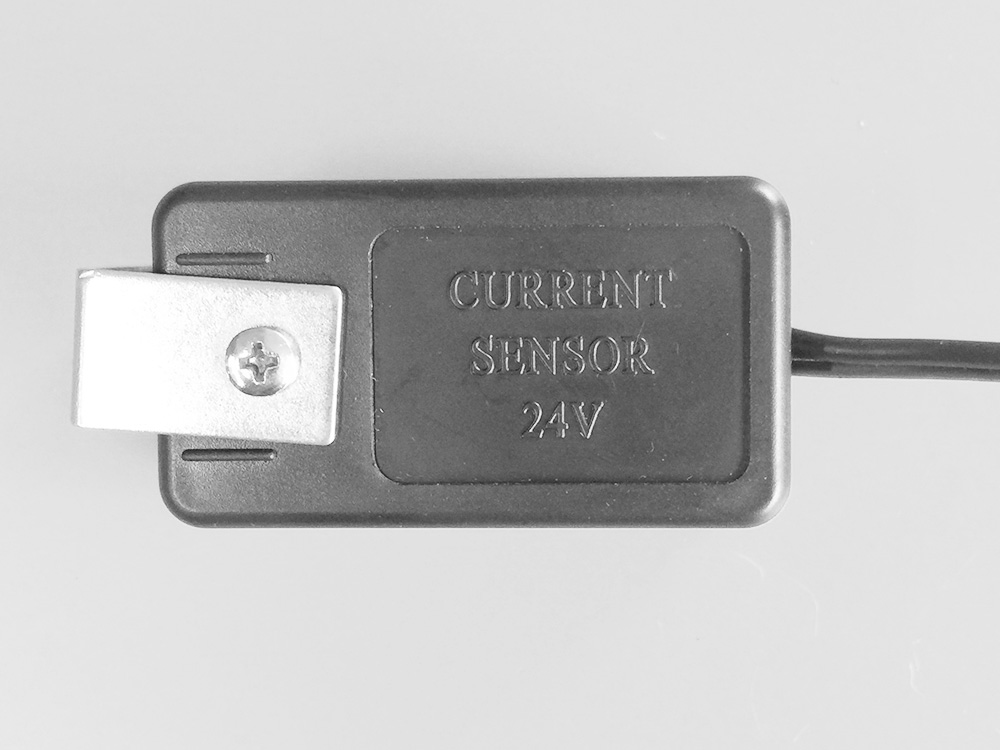

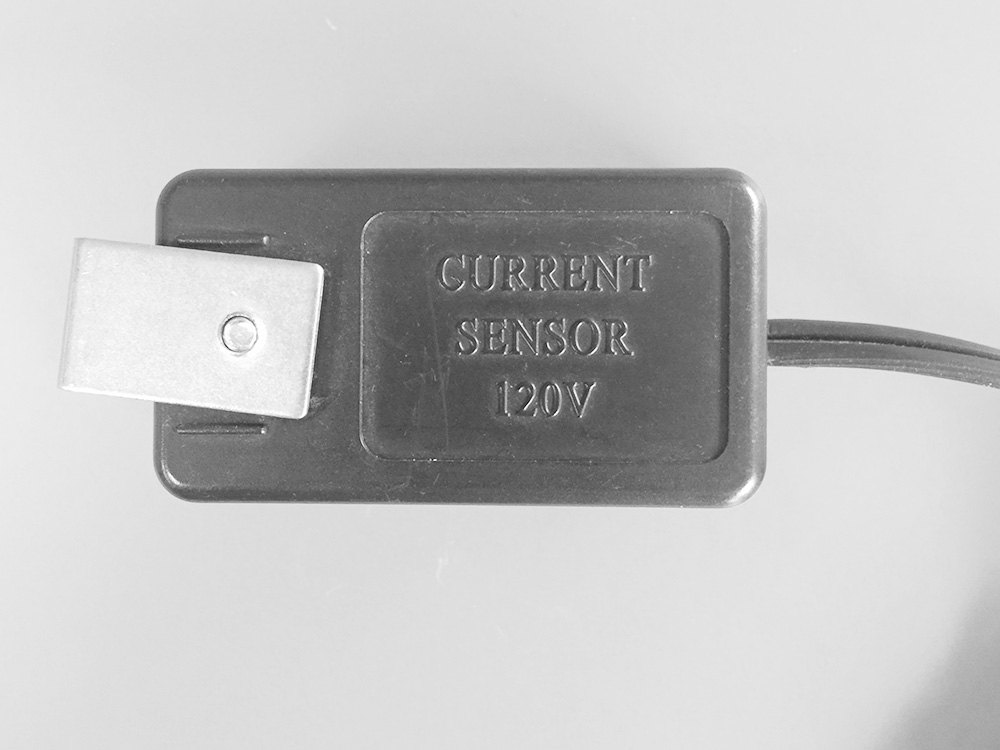

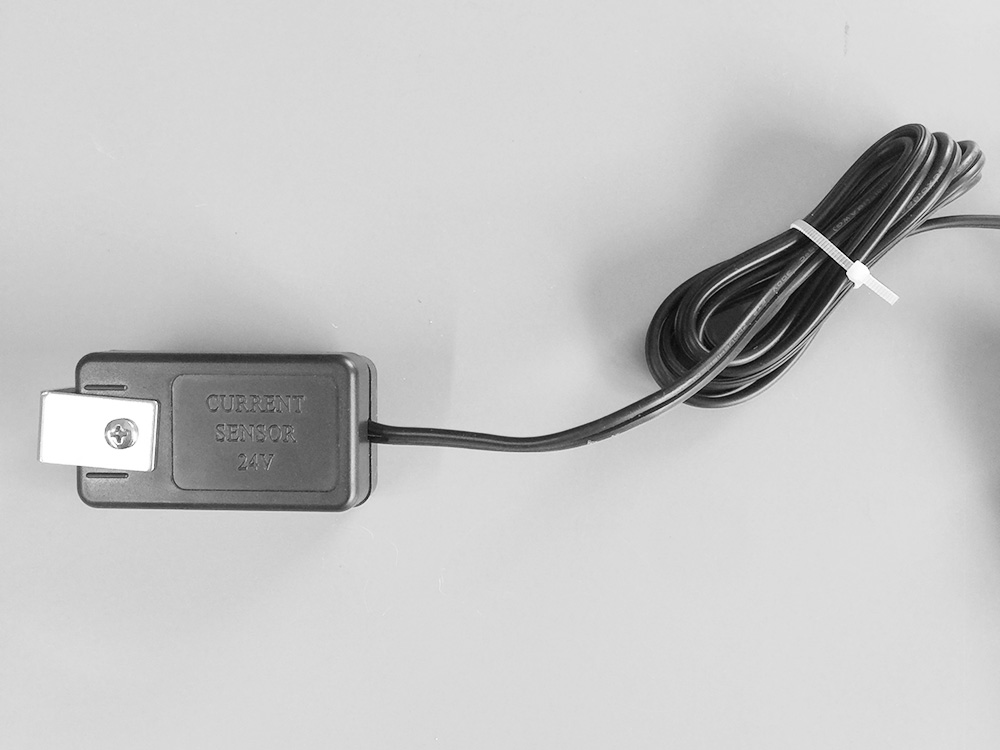

CURRENT SENSOR
◎Sensory current: 4～15A
◎Rated Voltage: 120VAC / 24VAC
◎Operating Temperature：0℃～50℃
◎Dimensions: 65mm（L）× 36mm（W）× 26mm（H）
◎Function characteristics: Current sensor is one of the electric current sensor, which is through the change of the load current control device, with low voltage control high voltage, security is strong.
◎Application: The product is intended for warehouse, grain depot, temperature and humidity control, and other special equipment of auxiliary control.
|
Item |
Cat. No. |
Rated current |
Wattage |
Specification |
|
1 |
GA-50 |
24VAC |
3W-10W |
SPT-1 18#Black/White |
|
2 |
GA-51 |
120VAC |
3W-120W |
SPT-1 18#Black |
