◎认证号码:E212530(UL认证)
◎认证标准:UL943和UL498
◎动作电流:4~6mA脱扣
◎额定电压:120V/240VAC
◎耐  压:输入与输出之间≥1500VAC
       输入和输出与外壳之间≥4000VAC
       输入和输出与地之间≥2500VAC
◎耐久次数:6000次
◎寿命次数:3000次
◎脱扣时间:≦25ms
◎浪涌等级:6KV/3KA
◎工作温度:-35℃~66℃
◎外观尺寸:65mm(长)*37mm(宽)*30mm(高)
◎功能特点:当电器和线路发生漏电时,本产品能迅速切断电源,保护人身安全。
◎应用范围:电吹风筒、直发器(电夹板)、卷发器、电剪、吸尘器、饮水机、电热水器、电饭煲、电冰箱、微波炉、洗衣机、洗碗机、消毒柜、电视机、电风扇、电脑、台灯、电动工具等等。

序号

产品型号

额定电流/额定电压

功率

电源线规格

1

XY9603

10A/120VAC
5A/240VAC

1200W

18AWG

2

XY421-DV3

13A/120VAC
5A/240VAC

1560W

18AWG/16AWG

3

XY421-DV5

15A/120VAC
7.5A/240VAC

1800W

16AWG

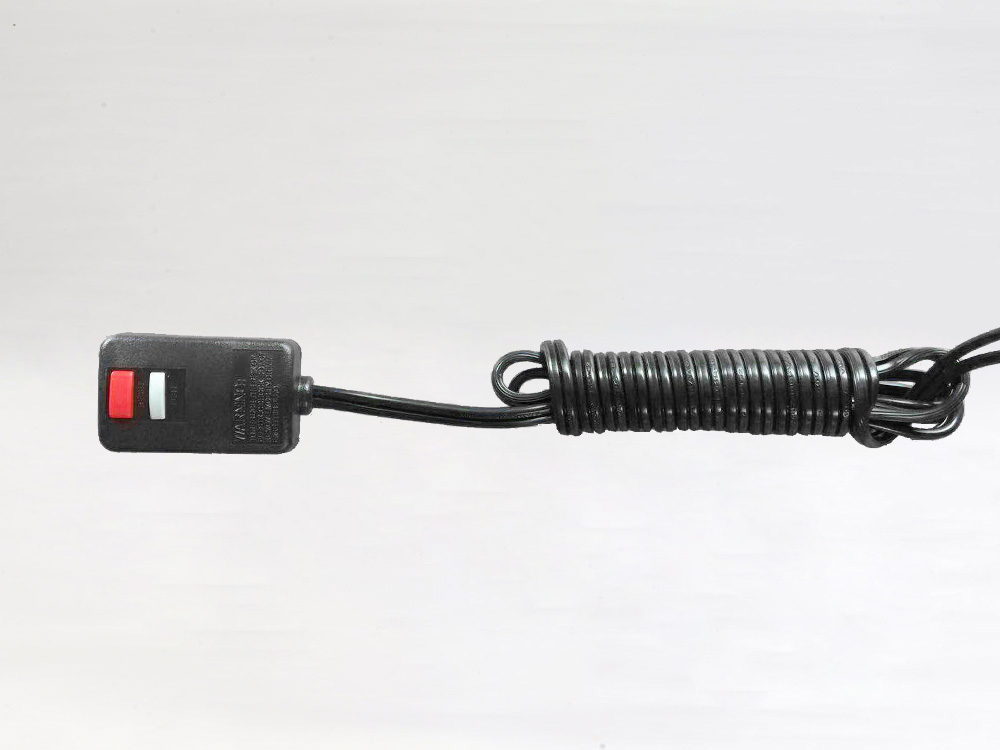

Plug-in Appliance Leakage Current Interrupter
◎File Number : E212530(UL Certified)
◎UL Standard: UL943 & UL498
◎Trip Level : 4~6mA
◎Rated Voltage: 120VAC/240VAC
◎Voltage Withstand:
  ≥1500VAC (between the input line and the output line)
  ≥4000VAC (between the enclosure and the input line, or Between the enclosure and the output line)
  ≥2500VAC (between the input line and the ground, or between the output line and the ground)
◎Durability: 6000 times
◎Lifetime: 3000 times
◎Trip Time: 25ms
◎Serge Grade:6KV/3KA
◎Operating Temperature:-35℃~66℃
◎Dimensions: 65mm(L)×37mm(W)×30mm(H)
◎Function: In case current leakage occurs in the circuit or the application, this unit interrupts the circuit and provides effective protection.
◎Application:The product is intended for various appliances, such as hair dryer, hair straighter, hair curler, electric scissors, dust collector, water dispenser, electric water heater, rice cooker, microwave oven, washing machine, disinfection cabinet, TV, fan, computer, lamp, electric equipment and so on.

Item

Cat. No.

Rated current/
Rated voltage

Wattage

Specification

1

XY9603

10A/120VAC
5A/240VAC

1200W

18AWG

2

XY421-DV3

13A/120VAC
5A/240VAC

1560W

18AWG/16AWG

3

XY421-DV5

15A/120VAC
7.5A/240VAC

1800W

16AWG
