◎认证号码:E75387(UL 认证)
◎认证标准:UL943 CSA C22.2 NO.144.1-06
◎动作电流:4~6mA脱扣
◎额定电压:120V/60Hz
◎耐  压:输入与输出之间≥1500VAC
       输入和输出与外壳之间≥4000VAC
◎耐久次数:6000次
◎寿命次数:3000次
◎脱扣时间:漏电流为6mA时≦30ms
       漏电流为264mA时≦25ms
◎浪涌等级:6KV/3KA
◎工作温度:-35℃~66℃
◎防护等级:IP65
◎外观尺寸:160mm(长)*86mm(宽)*46mm(高)
◎功能特点:1098GFCI 是一款具有电路漏电保护,中性线接地故障保护功能的产品。当电路或用电设备漏电电流超过预定值、中性线接地阻值为2欧姆时,控制器输出控制信号使产品切断电设备的电源,有效保护人身安全和用电设备。本产品还具有防雨淋,防浪涌,自动复位功能。
◎应用范围:清洗机,切割机,吸尘器,电热水器,电夹板,商业用洗衣机,潜水泵,泳池设备,户外电动工具及设备,家用电器等等。

序号

产品型号

额定电流/额定电压

功率

电源线规格

1

1098GFCI

15A/120VAC

1800W

12AWG/14AWG

2

1098GFCI

20A/120VAC

2400W

12AWG/14AWG

备注

可依客户需求配电源线和选择长度。

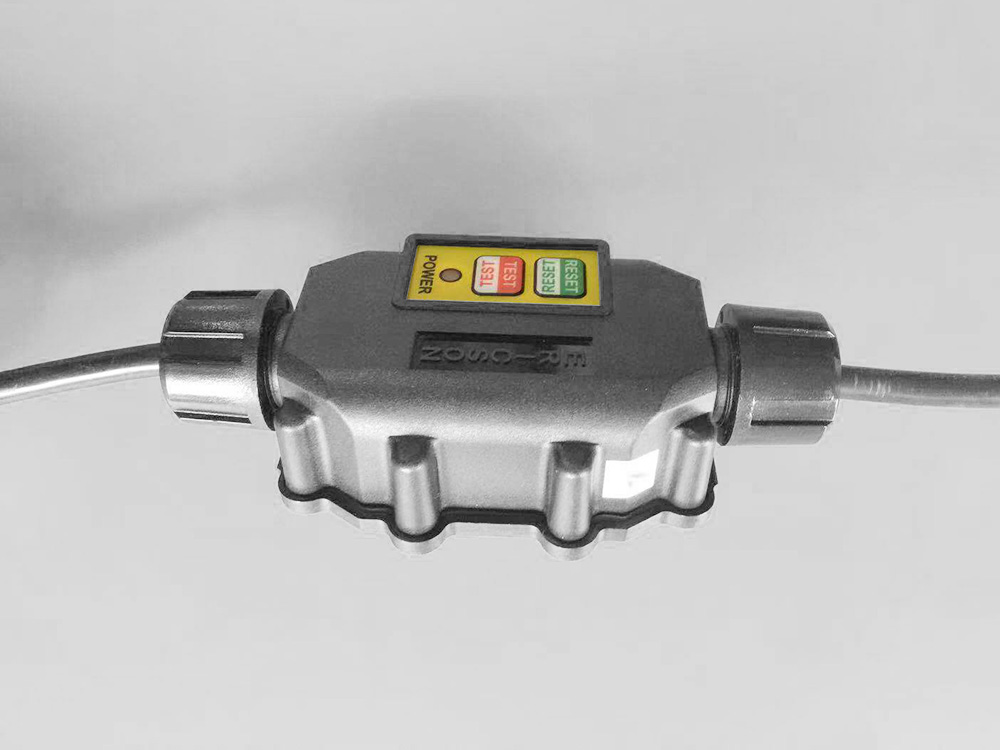

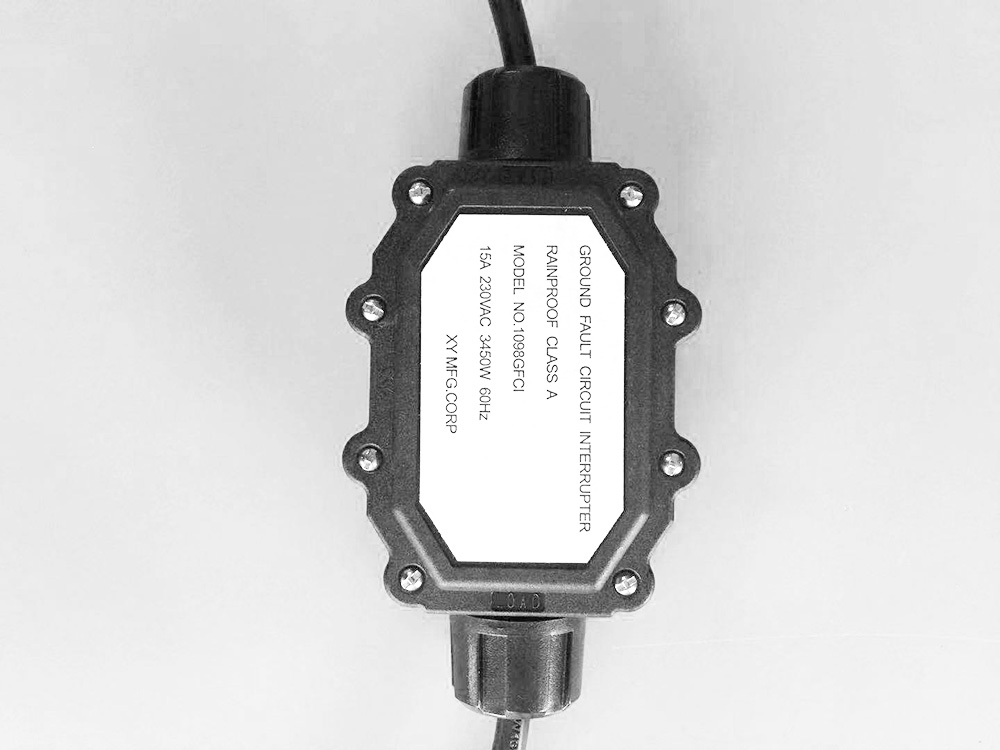

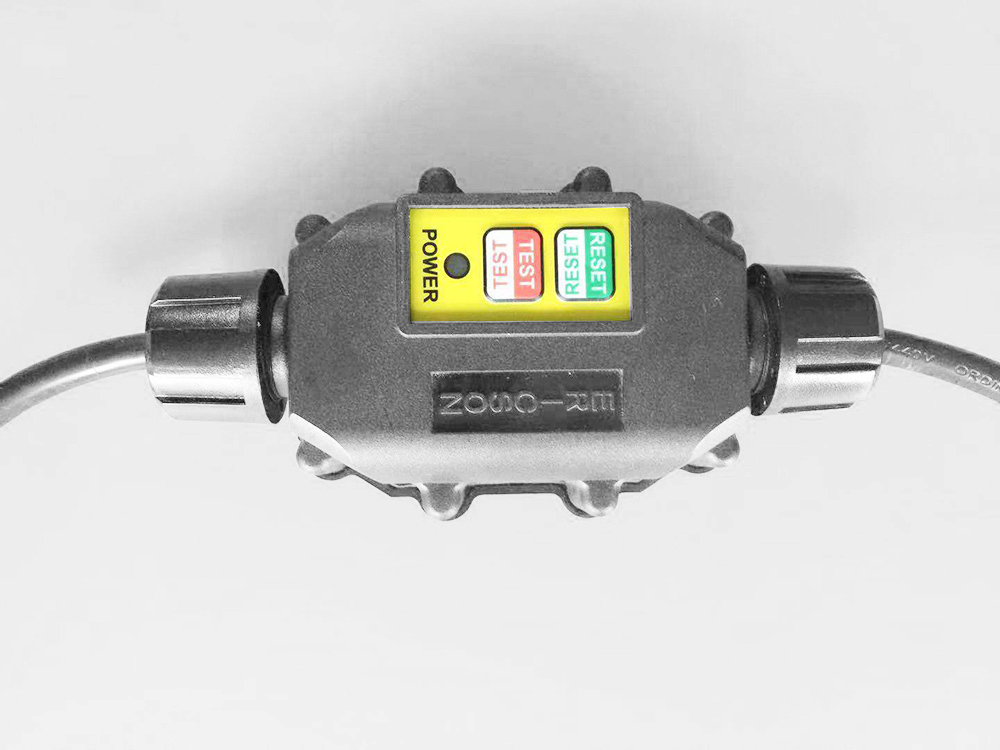

In-line Type Ground Fault Circuit Interrupter
◎File Number : E75387(UL Certified)
◎UL Standard: UL943 CSA C22.2 NO.144.1-06
◎Trip Level : 4~6mA
◎Rated Voltage: 120V/60Hz
◎Voltage Withstand:
  ≥1500VAC(between the input line and the output line)
  ≥4000VAC (between the enclosure and the input line, or Between the enclosure and the output line)
◎Durability: 6000 times
◎Lifetime: 3000 times
◎Trip Time:
  ≤30ms(when the leakage current is 6mA)
  ≤25ms(when the leakage current is 264mA)
◎Serge Grade: 6KV/3KA
◎Operating Temperature: -35℃~66℃
◎Waterproof Grade: IP65
◎Dimensions: 160mm(L)×86mm(W)×46mm(H)
◎Function: This product has the protection for the leakage and the protection for the grounded neutral line fault. In case there is leakage current in the circuit or the appliance or the resistance of the grounded neutral line is 2 ohms, it interrupts the circuit and provides effective protection. It is rainproof and surge proof. It resets automatically.
◎Application: The product is intended for outdoor electric equipment and household devices, such as cleaning machine, cutting machine, dust collector, electric heater, electric iron, washing machine, pump, swimming and so on.

Item

Cat. No.

Rated current/Rated voltage

Wattage

Specification

1

1098GFCI

15A/120VAC

1800W

12AWG/14AWG

2

1098GFCI

20A/120VAC

2400W

12AWG/14AWG

Note

The power cord length is according to the requirements of the customer.
